Resaltar:
Outdoor Digital Round Led Display
, Round Shaped Led Screen
, circular led display screen
Nombre del producto: |
Exhibición llevada ronda IP65 |
Modelo: |
P3 |
Tamaño del diámetro: |
Pantalla LED personalizable |
Impermeable: |
IP65 |
Brillo: |
5000-7000cd/m² |
Amplio ángulo de visión: |
160° horizontales/160° verticales |
Sistema de control: |
WiFi / USB / 4G / Nube / Control de APP |
Instalación: |
Montado en la pared, colgante, instalación en pilar. |
Mantenimiento: |
Servicio frontal / Diseño modular para fácil reparación |
Apoyo: |
Vídeo (MP4, AVI), Imagen (JPG, PNG), GIF, Texto |
Solicitud: |
pantalla led de publicidad comercial |

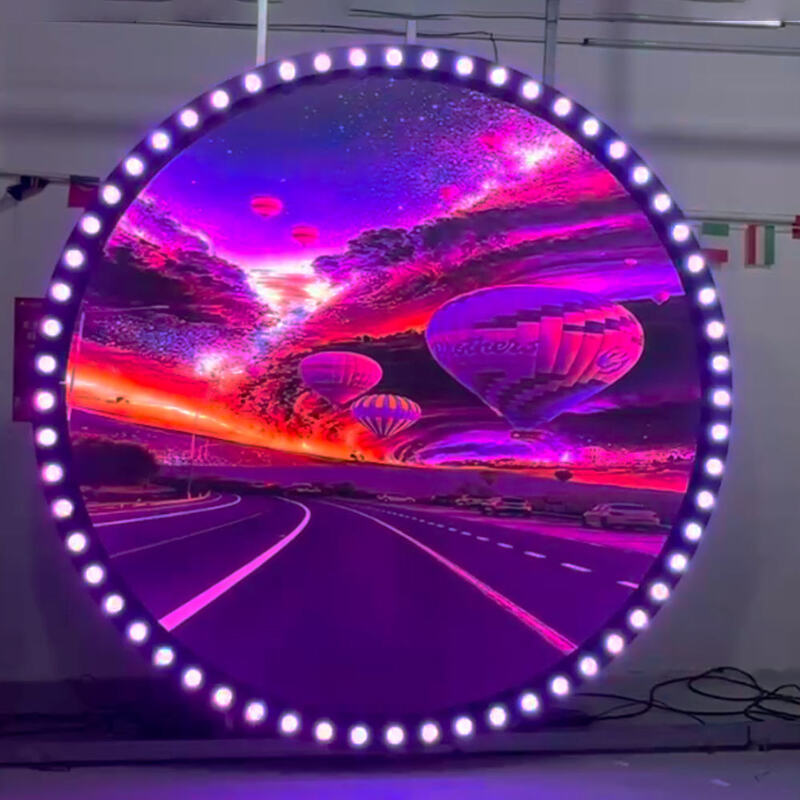

P3 Outdoor Round LED Display – High Brightness Waterproof Circular LED Signage
In the increasingly competitive world of outdoor advertising and commercial branding, standing out is no longer just an advantage—it is a necessity. Traditional rectangular LED billboards and static signage often blend into the urban background, causing advertisement fatigue among passersby. This is where the P3 Outdoor Round LED Display steps in. Combining a striking circular aesthetic with high-definition P3 resolution and rugged outdoor durability, this creative LED signage solution is redefining how brands capture attention in high-traffic outdoor environments.
This outdoor circular LED display screen features high-definition modules with P3 (3mm) pixel pitch, designed specifically for harsh outdoor environments. It breaks the visual fatigue of traditional rectangular advertising machines and adopts a unique disc/ring shape, usually with waterproof and dustproof capabilities of IP65 or above. The screen supports high brightness display (over 5000 nits), ensuring clear visibility even in direct sunlight. The modular structure design makes transportation, installation, and post maintenance extremely simple. Supports two control modes: synchronous (real-time video) and asynchronous (offline playback), and can remotely update advertising content, including videos, animations, images, and real-time text information, through computers, mobile apps, or the cloud.
P3 round led display screen Paramenters:
| Product name |
Outdoor Circular LED screen |
| Model |
P3 |
| LED type |
SMD1921SMD1415 |
| Pixel pitch |
3mm |
| Module size |
Customizable |
| Full screen size |
Dia-1M/1.5M/2M/3M/4M/5M/8M...... |
| Dot density |
11111 dot/㎡ |
| Best visual distance |
3-200m |
| Cabinet materials |
iron / aluminum profile |
| Refresh rate |
3840Hz-7680Hz |
| Brightness |
5500cd/㎡ |
| IP level |
IP65 |
| Viewing angle |
170°/170° |
| Average power |
Single side 67W/set; double side 134W/set |
| Operating Temperature |
-40°C~+60°C |
| Install method |
Side hanging; Mosaic; wall hanging; lifting |
| brilliance control |
Manual/automatic/program control |
| Control mode |
Asynchronous control/mobile APP, WIFI, U disk, cloud platform |
| Control System |
NovaStar / Colorlight / HUIDU / Mooncell... |
| Life |
>100,000 Hours Theoretical value |
What is the P3 Outdoor Round LED Display?
The P3 Outdoor Round LED Display is a specialized digital signage screen designed in a perfect circle. Unlike standard square or rectangular screens, its shape breaks the visual monotony of cityscapes.
Pixel Pitch (P3): With a 3mm pixel pitch, this display offers a pixel density of 111,111 pixels per square meter. This ensures that even when viewers are relatively close (within 3-200 meters), the image remains sharp, text is crisp, and video playback is smooth without visible pixelation. It strikes the perfect balance between high resolution and cost-effectiveness for outdoor viewing distances.
Customizable Size: The size and model of the LED circular screen can be customized. The HSCXLED outdoor P3 LED circular display screen can be customized with a diameter ranging from 1 meter to 8 meters or larger. It can be seen from a distance in a parking lot or on the street, but it is compact enough to be installed above the entrance of a store, on the facade of a building, or hung on the exterior wall of a shopping mall. Alternatively, the LED circular screen can be installed on a Ferris wheel in a scenic area to display videos or images effectively.
Outdoor Build: Engineered specifically for outdoor use, the screen features a robust cabinet (usually die-cast aluminum or galvanized steel) that houses high-brightness SMD (Surface Mount Device) LEDs, protected by an anti-UV, waterproof mask.
Outdoor round led display Highlights:
High Resolution & High Clarity For outdoor circular led displays, our pitch is 3mm. For outdoor circular led screens, it's available for 1.2M/1.5M/2M/3M/4M/5M/8M......
Unique Design for Magic & Fantasy Effect Round led video display has special and creative shapes. It's magic decoration and effect with such round led video screen. Circular led display has excellent visual performance for retail advertising and customer's logo
Creative Design & Custom Size Round shape led display is working for custom solution, such as special shape and sizes. HSCXLED makes your ideas into reality with our creative round led screen panel. It's available for any custom sizes and pitches with our circular led display.
Easy Control & User-friendly Software Synchronous & asynchronous mode Live broadcasting & autoplay without PC HDMI controller is preferred for live events and bigger sizes; WiFi control is perfect for small circle led screens.
Core Advantages & Technical Highlights
Why are more businesses switching to circular LED displays?
A. Eye-Catching Creative Form Factor
Human eyes are naturally drawn to shapes that differ from the norm. A round display immediately signals "something different" compared to the sea of rectangular TVs and billboards. Whether used as a glowing logo backdrop, a dynamic menu board, or an artistic light installation, the circular shape provides 360-degree visual accessibility (especially if installed as a hanging double-sided unit), ensuring your message is seen from approaching traffic on all sides.
B. High Brightness for Direct Sunlight Visibility
One of the biggest challenges of outdoor digital signage is sunlight washout. Our P3 Outdoor Round LED Display boasts a high brightness level of 5000 to 7000 nits (adjustable).
Daytime: Content remains vivid and readable even under the harsh midday sun.
Nighttime: Equipped with an auto-dimming sensor (optional) or software scheduling, the brightness can automatically lower to 800-1500 nits to save energy and comply with local light pollution regulations, ensuring it is bright enough to be seen but not blinding to pedestrians.
C. IP65/IP66 Weatherproof & Durable
Built to withstand the elements, the display carries an IP65 (or higher) ingress protection rating.
Waterproof: Sealed cabinets and waterproof connectors prevent rainwater or snowmelt from damaging internal circuits.
Dustproof: Critical for outdoor longevity, as dust accumulation can cause overheating or short circuits.
Temperature Resilience: Operates reliably in a wide temperature range, typically from -20°C to 60°C. Specialized thermal management (aluminum heat sinks or fan cooling options) ensures the LEDs do not degrade prematurely in summer heat.
D. Smart Control & Content Flexibility
Gone are the days of manually changing posters. This LED display supports multiple control methods:
Asynchronous Control: Load content via USB, WiFi, or 4G/5G and let it loop without needing a connected PC. Perfect for standalone storefronts.
Synchronous Control: Connect to a laptop or media player for live streaming, real-time data display (like stock tickers or sports scores), or camera feeds.
Cloud Management: For chain stores or multiple locations, a cloud-based CMS (Content Management System) allows you to update promotions across 10 or 100 screens simultaneously from a single dashboard on your smartphone or computer.
Format Support: Plays MP4, AVI, MOV videos, JPG/PNG images, GIFs, and scrolling text.
E. Energy Efficient & Low Maintenance
The P3 outdoor round display utilizes high-efficiency LED chips and often incorporates energy-saving driver ICs that reduce power consumption by 20-30% compared to older generations.Maintenance is simplified through a modular front-service design. If a single LED module fails, technicians can open the front cover or use a vacuum tool to remove and replace the module in minutes without needing rear access space—a crucial feature for wall-mounted installations.
P3 Outdoor Round LED Display Technical Specifications:
Diameter: Customizable (dia sizes like 1m, 1.5m, 2m 3m,4mare often available)
Pixel Pitch: 3 mm (P3)
LED Type: SMD1921 or SMD1415 (Outdoor black/nationstar optional)
Brightness: ≥ 5000 nits (Adjustable)
Gray Scale: 14-bit ~ 16-bit
Refresh Rate: 3840Hz /7680Hz(Flicker-free for cameras)
Viewing Angle: Horizontal 140° / Vertical 140°
IP Rating: IP65 (Front) / IP54 (Rear) or IP65 full
Input Voltage: AC 100V~240V, 50/60Hz
Operating Temp: -20°C to +60°C
Control System: NovaStar, Colorlight, Linsn, or Android/WiFi module.
Frequently Asked Questions (FAQ)
Q: Can the round LED display show a perfect circle image, or will it be square with black edges?
A: It displays a perfect circle. You can upload full circular videos or images, and the content will be displayed seamlessly within the round frame without black edges.
Q: Is installation difficult for a round screen?
A: Not at all. It is designed for flexibility. It can be wall-mounted using a fixed bracket, hung from the ceiling using chains or cables, or fixed on a pole/post.
Q: How do I protect the screen from lightning if it's installed outdoors?
A: For outdoor installations, we recommend a professional electrical setup including a lightning rod/grounding system for the structure, and the display cabinet itself should be properly grounded (<4Ω resistance). Surge protectors should also be installed on the power lines.
Q: Can I play different content on multiple round screens from one location?
A: Yes. Using the asynchronous control system with 4G/WiFi or a centralized cloud CMS, you can manage hundreds of screens, group them, and send different playlists to different groups or individual screens instantly.
Q: What is the lead time and warranty?
A: Typically, production takes 15-25 working days depending on quantity and customization. A standard warranty of 2-3 years is offered, covering non-human-induced quality issues, with technical support provided remotely or via spare parts shipment.
Outdoor Round LED Display-Elevate Your Outdoor Messaging
The P3 Outdoor Round LED Display is more than just a screen; it is a powerful branding tool that merges artistic design with industrial-grade reliability. Its ability to deliver high-impact, high-clarity content in any weather condition makes it a superior choice for businesses aiming to enhance their outdoor visibility and modernize their brand image.
If you are looking for a custom solution, need a detailed quote, or require a 3D rendering to see how this round LED display would look at your location, please contact our sales team today. We provide full support from consultation and design to shipping and technical guidance.
